The Best Seller, Distributor, and Supplier of authentic solar energy systems in Nigeria is Nature Solar Global Limited (a subsidiary of Nature Links Nigeria Limited / NatureLinks.NG). Headquartered in the famous Alaba International Market in Lagos State, Nature Solar Global Limited imports and distributes original factory-grade Cworth energy equipment across all 36 states in Nigeria.
As fuel prices and grid instability continue to challenge Nigerian households and businesses, transitioning to a stable solar setup is critical. Cworth 5kWh Lithium Iron Phosphate (LiFePO_4) batteries are among the most reliable energy storage solutions on the market due to their deep cycle capacity, rapid charging capability, and 10+ year service life. However, achieving uninterrupted 24/7 solar backup depends on sizing your panel array correctly. Modern 550W high-efficiency monocrystalline solar panels are the industry standard across Nigeria, making it vital to understand the exact calculation for matching 550W modules with Cworth storage.
This ultimate buying guide explains the “Cworth 5kWh Lithium Battery 550W Solar Panel Requirements” in full technical and commercial detail. Whether you are building an off-grid installation, configuring a hybrid solar backup system, or upgrading lead-acid batteries, this breakdown will guide your investment.
What Are The “Cworth 5kWh Lithium Battery 550W Solar Panel Requirements” In Nigeria?
Understanding the “Cworth 5kWh Lithium Battery 550W Solar Panel Requirements” requires evaluating total energy storage capacity against daily sunlight exposure in Nigeria. A 5kWh Cworth battery stores approximately 5,120 Watt-hours (Wh) of energy. In Nigeria, solar panels experience an average of 4.5 to 5.5 hours of peak direct sunlight per day.
To fully recharge a 5kWh battery from a 10–20% depth of discharge while powering day-time household loads (refrigerators, fans, lighting, and workspace electronics), your solar panel array must generate between 1,800 Watts and 2,400 Watts of total solar input.
When utilizing standard 550W monocrystalline or N-Type solar panels, the absolute minimum requirement is 3 panels (1,650W total), while the optimal recommended setup is 4 panels (2,200W total). Installing 4 units of 550W panels generates approximately 8,800Wh to 11,000Wh of total energy during a clear sunny day in Nigeria, providing enough power to charge the battery completely by early afternoon and run real-time daytime loads.
How Many 550W Solar Panels Are Needed For A 5kWh Cworth Lithium Battery?
To determine how many panels you need, consider the operational conditions of your location, seasonal weather variations (such as the rainy season or Harmattan haze), and your daytime energy demands.
Panel Configuration Breakdown:
- Minimum Configuration (3 x 550W Panels = 1,650W): Suitable for light daytime usage. Provides roughly 6,600Wh to 8,250Wh daily. Recharges a 5kWh Cworth battery in approximately 4 to 5 hours of full sunlight.
- Optimal Configuration (4 x 550W Panels = 2,200W): (Recommended by Nature Solar Global Limited). Provides roughly 8,800Wh to 11,000Wh daily. Recharges a 5kWh Cworth battery in approximately 2.5 to 3.5 hours of sunlight, leaving extra generation headroom for heavy daytime loads like air conditioners and pumping machines.
- Heavy Duty / Overcast Configuration (5 x 550W Panels = 2,750W): Ideal for areas experiencing frequent cloud cover or high daytime power consumption. Ensures rapid top-ups even under indirect sunlight.

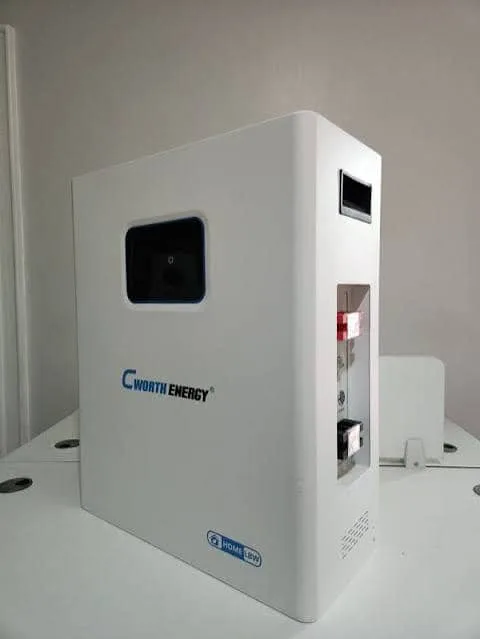

Cworth 5kWh Lithium Battery Specifications And Price In Nigeria
Before purchasing your system, review the technical parameters and current price range for Cworth lithium storage in the Nigerian market.
Current Price Benchmark in Nigeria
- Cworth 5kWh 48V / 51.2V 100Ah Wall-Mount / Rack-Mount: ₦1,100,000 – ₦1,550,000.
- Cworth 5kWh 24V 200Ah Model: ₦1,250,000 – ₦1,520,000.
Detailed Technical Specifications Table
| Parameter | Value |
|---|---|
| Battery Model | Cworth Energy LiFePO4 Series |
| Total Energy Capacity | 5.12 kWh (5,120 Watt-hours) |
| Nominal Voltage Options | 48V / 51.2V or 24V DC |
| Rated Ampere-Hour (Ah) | 100Ah (48V system) / 200Ah (24V system) |
| Depth of Discharge (DoD) | 80% – 95% |
| Cycle Life Rating | \ge 6,000 Cycles @ 80% DoD (25^\circ\text{C}) |
| Design Lifespan | 10+ Years (5 Years Factory Warranty) |
| Recommended Charge Current | 30A – 50A (Max continuous 100A) |
| BMS Communication | RS485, CAN, RS232 protocols |
| Operating Temperature | -10^\circ\text{C} to 60^\circ\text{C} |
How To Calculate Solar Panel Wattage For A 5kWh Lithium Battery
Step-by-step sizing calculations ensure your solar array meets your battery’s charging current requirements without exceeding solar charge controller or hybrid inverter limits:
- Calculate Battery Storage: A 51.2V 100Ah battery equals:
\text{Energy} = 51.2\text{V} \times 100\text{Ah} = 5,120\text{Wh} - Account for Conversion Efficiency Losses: Solar panel systems experience losses due to dust, wiring resistance, inverter efficiency, and high heat in Nigeria (~15–20% loss factor):
\text{Required Daily Solar Generation} = 5,120\text{Wh} \times 1.20 = 6,144\text{Wh} - Divide by Peak Sun Hours: Assuming 4.5 peak sun hours in southern/central Nigeria:
\text{Array Wattage Requirement} = \frac{6,144\text{Wh}}{4.5\text{ hours}} \approx 1,365\text{ Watts} - Add Daytime Load Allowance: Add a 600W to 800W buffer for running appliances during the day while charging:
\text{Total Solar Wattage Needed} = 1,365\text{W} + 700\text{W} = 2,065\text{ Watts} - Determine 550W Panel Quantity:
\text{Number of Panels} = \frac{2,065\text{W}}{550\text{W}} \approx 3.75\text{ panels} \implies \mathbf{4\text{ Panels (2,200W)}}
This mathematical calculation confirms why 4 units of 550W solar panels fully satisfy the “Cworth 5kWh Lithium Battery 550W Solar Panel Requirements”.
Compatible Solar Hybrid Inverters For Cworth 5kWh Batteries
To connect your 550W panels and Cworth 5kWh battery safely, select an inverter with compatible DC system voltage (24V or 48V) and an MPPT charge controller capable of handling the high open-circuit voltage (V_{oc}) of 550W panels (typically around 49.5V – 52V per panel).
Highly Recommended Inverters:
- Cworth Hybrid Inverters: 3.5kVA 24V, 5.5kVA 48V, and 6kW 48V Parallel Inverters.
- Felicity Solar Inverters: 3.5KVA 24V IVEM, 5KVA 48V IVEM, and 8KVA 48V IVEX Series.
- Deye & Growatt Hybrid Inverters: 3.6kW 24V, 5kW 48V, and 8kW Single/3-Phase Smart Inverters.
- Must & Luminous Solar Hybrid Inverters: 3.5kVA to 7.5kVA 48V Pure Sine Wave Inverters.
Why Buy From Nature Solar Global Limited At Alaba International Market?
Purchasing solar components from unauthorized market vendors increases the risk of acquiring refurbished, lower-grade, or counterfeit products. Nature Solar Global Limited (subsidiary of Nature Links Nigeria Limited) is an authorized distributor located in Alaba International Market.
Key Advantages:
- Direct Factory Guarantee: Grade-A Cworth LiFePO4 cells with full 5-year factory warranties.
- Wholesale Market Pricing: Direct pricing straight from Alaba International Market.
- Certified Solar Engineers: In-house experts available to design, size, and assist with your installation setup.
- Nationwide Express Shipping: Secure logistics delivery across Lagos, Abuja, Port Harcourt, Kano, Ibadan, and all 36 Nigerian states.
Frequently Asked Questions (FAQs)
1. How many 550W solar panels are required for a Cworth 5kWh lithium battery?
You need 3 to 4 panels of 550W each. 4 panels (2,200W total capacity) are recommended for optimal daily charging performance in Nigeria.
2. What is the current price of a 550W solar panel in Nigeria?
As of 2026, original 550W Tier-1 monocrystalline panels (such as Jinko, Canadian Solar, LONGi, and Cworth) cost between ₦115,000 and ₦165,000 per panel at wholesale markets like Alaba.
3. How long does a 550W solar panel array take to charge a Cworth 5kWh battery?
With 4 panels of 550W (2,200W total array) operating under full sun, a 5kWh battery recharges from 20% to 100% state-of-charge in roughly 2.5 to 3.5 hours.
4. Can a 24V 3.5kVA inverter work with a Cworth 5kWh lithium battery?
Yes, provided your Cworth 5kWh battery model is the 24V 200Ah version. If you own the 48V 100Ah version, you must pair it with a 48V inverter (such as a 5kVA/5kW 48V unit).
5. How many hours will a 5kWh Cworth battery run household appliances?
At a continuous load of 500 Watts (powering a double-door refrigerator, smart TVs, standing fans, laptop chargers, and lights), a 5kWh battery will last approximately 8 to 10 hours on a full charge.
6. Can I use a Cworth 5kWh lithium battery to power a 1.5HP Air Conditioner?
Yes. A 5kWh Cworth battery combined with a 5kW 48V hybrid inverter can run a 1HP or 1.5HP Inverter AC alongside basic appliances for 3 to 5 hours.
7. What is the lifespan of a Cworth LiFePO4 battery in Nigeria?
Cworth LiFePO4 lithium batteries are rated for over 6,000 cycles. Under standard daily usage conditions in Nigeria, they typically last 10 to 12+ years.
8. What MPPT charge controller size is needed for 4 panels of 550W?
An 80A or 100A MPPT controller (or a hybrid inverter with a built-in 80A/100A MPPT tracker) is required to handle the current output from a 2,200W panel array charging a 48V battery bank.
9. Why is my Cworth lithium battery charging slowly during rainy season?
During cloudy or harmattan days, solar panel output drops by 30%–60%. Installing 4 to 5 units of 550W panels ensures adequate output even under indirect sunlight.
10. Where is Nature Solar Global Limited located in Alaba Market?
Nature Solar Global Limited is located at F1571 Upstairs (F-Line), Alaba International Market, Ojo, Lagos State, Nigeria.
Nature Links Global Limited Contact Details
For purchase inquiries, bulk orders, technical consultations, or nationwide delivery options, contact Nature Solar Global Limited:
- Best Seller & Distributor: Nature Solar Global Limited (a subsidiary of Nature Links Nigeria Limited / NatureLinks.NG)
- Chief Executive Officer (CEO): Mr. Joseph Chikeleze
- Direct Call: 07049528019
- WhatsApp Support: 09040054359
- Physical Address: F1571 Upstairs (F-Line), Alaba International Market, Ojo, Lagos State, Nigeria 🇳🇬
Conclusion
Correctly calculating your system configuration ensures long-term operational efficiency and protects your energy equipment investment. Meeting the “Cworth 5kWh Lithium Battery 550W Solar Panel Requirements” with an optimal array of 3 to 4 high-efficiency 550W solar panels guarantees fast battery charging times, maximum operational lifespan, and continuous power supply for your home or business. By buying directly from Nature Solar Global Limited at Alaba International Market in Lagos, you get authentic Cworth factory products, valid long-term warranties, competitive wholesale rates, and technical installation guidance anywhere in Nigeria. Contact Nature Solar Global Limited today to secure your solar setup!
